LibAFL Introduce





#Fuzzer #Rust

前置知识

  • Rust
  • Fuzzing

LibAFL介绍

LibAFL:为了解决大量的fuzzer工具重复工作的问题,将fuzzer拆分成多个部分,编写fuzzer只需要将其组装,如输入可以改成字节输入或者AST输入,不需要重新安装熟悉多个fuzzer。缺点就是Rust门槛比较高。

资源

LibAFL Book:https://aflplus.plus/libafl-book/libafl.html 项目:https://github.com/AFLplusplus/LibAFL

正文

baby_fuzzer

官方给出的一个简单案例用来说明如何使用LibAFL,我们摘取一部分,以下就是一个简单的fuzzer代码,看着很复杂,不如直接AFL++一把梭。

    // Create an observation channel using the signals map
    let observer = unsafe { StdMapObserver::from_mut_ptr("signals", SIGNALS_PTR, SIGNALS.len()) };
    // Feedback to rate the interestingness of an input
    let mut feedback = MaxMapFeedback::new(&observer);

    // A feedback to choose if an input is a solution or not
    let mut objective = CrashFeedback::new();

    // create a State from scratch
    let mut state = StdState::new(
        // RNG
        StdRand::with_seed(current_nanos()),
        // Corpus that will be evolved, we keep it in memory for performance
        InMemoryCorpus::new(),
        // Corpus in which we store solutions (crashes in this example),
        // on disk so the user can get them after stopping the fuzzer
        OnDiskCorpus::new(PathBuf::from("./crashes")).unwrap(),
        // States of the feedbacks.
        // The feedbacks can report the data that should persist in the State.
        &mut feedback,
        // Same for objective feedbacks
        &mut objective,
    )
    .unwrap();

    // The Monitor trait define how the fuzzer stats are displayed to the user
    #[cfg(not(feature = "tui"))]
    let mon = SimpleMonitor::new(|s| println!("{s}"));
    #[cfg(feature = "tui")]
    let mon = TuiMonitor::new(String::from("Baby Fuzzer"), false);

    // The event manager handle the various events generated during the fuzzing loop
    // such as the notification of the addition of a new item to the corpus
    let mut mgr = SimpleEventManager::new(mon);

    // A queue policy to get testcasess from the corpus
    let scheduler = QueueScheduler::new();

    // A fuzzer with feedbacks and a corpus scheduler
    let mut fuzzer = StdFuzzer::new(scheduler, feedback, objective);

    // Create the executor for an in-process function with just one observer
    let mut executor = InProcessExecutor::new(
        &mut harness,
        tuple_list!(observer),
        &mut fuzzer,
        &mut state,
        &mut mgr,
    )
    .expect("Failed to create the Executor");

    // Generator of printable bytearrays of max size 32
    let mut generator = RandPrintablesGenerator::new(32);

    // Generate 8 initial inputs
    state
        .generate_initial_inputs(&mut fuzzer, &mut executor, &mut generator, &mut mgr, 8)
        .expect("Failed to generate the initial corpus");

    // Setup a mutational stage with a basic bytes mutator
    let mutator = StdScheduledMutator::new(havoc_mutations());
    let mut stages = tuple_list!(StdMutationalStage::new(mutator));

    fuzzer
        .fuzz_loop(&mut stages, &mut executor, &mut state, &mut mgr)
        .expect("Error in the fuzzing loop");

首先序中说过LibAFL是将fuzzer的多个步骤进行解耦,好让每个部分可以进行替换,实现一个fuzzer可以搞定所有fuzzer的效果。那我们如果编写fuzzer需要哪些部分呢?以下是我根据自己的认知需要的部分

  • A-存储我们fuzzing过程中的状态
  • B-提供fuzzing过程中的输入数据
  • C-提供fuzzing输入的变异算法
  • D-判定fuzzing结果是否有效(包含最少两种:有趣则加入原始语料库,产生如crash效果加入crash结果库)
  • E-收集覆盖率
  • F-任务调度,种子以怎样的方式或者算法加入队列
  • G-执行器,如何去执行fuzzing
  • H-界面输出,提供一个类似AFL界面来告知用户fuzzing的结果 我自己大概能想到这几个组件,接下来看一下LibAFL的组件

组件

  • Observer
  • Executor
    • InProcessExecutor
    • ForkserverExecutor
    • TimeoutExecutor
    • InProcessForkExecutor
  • Feedback
  • Input
  • Corpus
  • Mutator
  • Generator
  • Stage

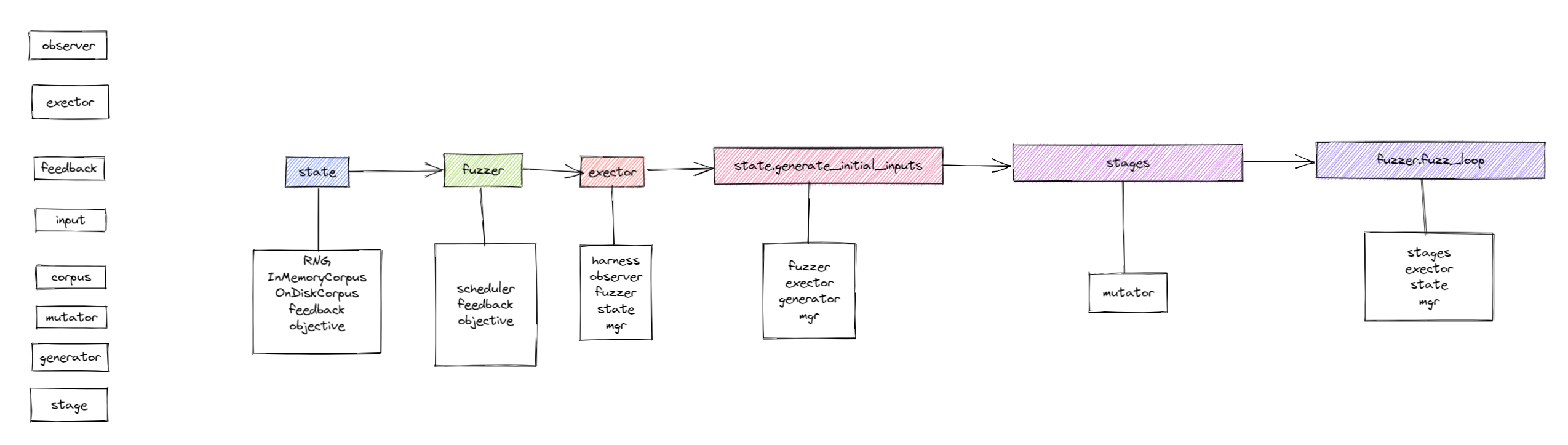

以baby_fuzzer为例看看如何装配组件的 picture 通过对着色部分的组装完成一个简单的fuzzer,乍看是有些繁杂,但是了解了每个部分功能以后,直接在原有代码进行更改就会比较简便。
